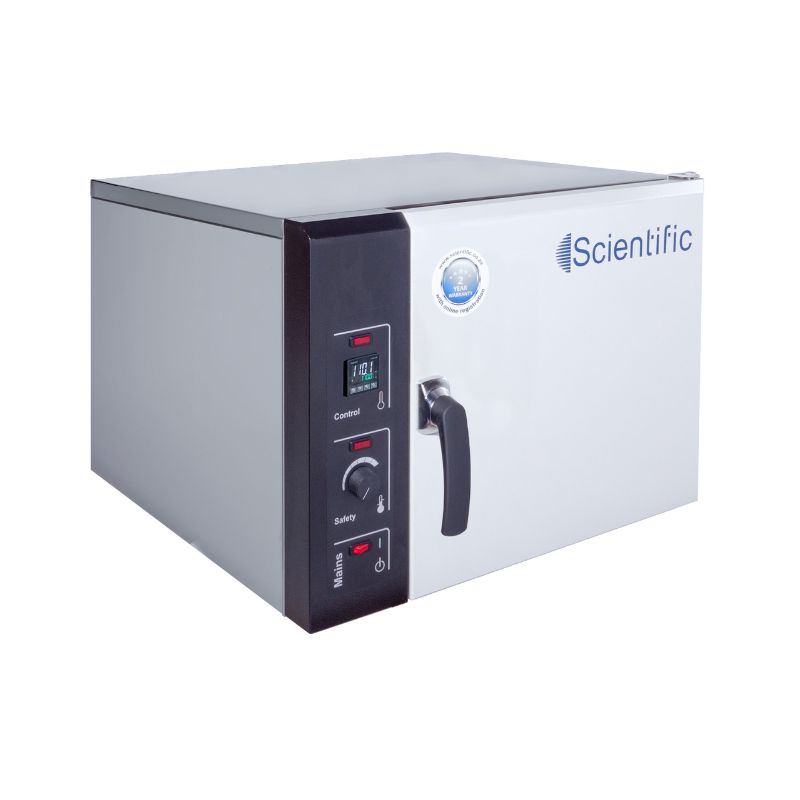

160L Digital Laboratory Incubator
The 160L Digital Laboratory Incubator is a high-accuracy, temperature-controlled incubator designed for dependable incubation, testing and sample conditioning in scientific and industrial laboratories. With a generous 160 litre chamber, advanced PID temperature control and a precision PT100 temperature sensor, it provides stable and uniform heating for applications where consistent, reproducible conditions matter.
Designed for use across microbiology, life sciences, pharmaceutical, clinical, chemistry, biotechnology and research laboratories, the incubator operates from ambient +7°C to 110°C. A digital display shows both the set and actual temperature to 0.1°C, allowing laboratory personnel to monitor incubation conditions easily and accurately.
Precise Digital Temperature Control
The electronic PID temperature controller continuously regulates chamber temperature to maintain stable incubation conditions. Combined with a high-accuracy PT100 temperature sensor, the system provides precise temperature measurement and responsive control across the operating range.
Temperature is displayed at a resolution of 0.1°C, with chamber temperature uniformity of ±1.0°C and single-point temperature variation as low as ±0.3°C under specified no-load test conditions.
Key Features
- 160 litre capacity: Spacious laboratory chamber suitable for routine and higher-volume incubation requirements.
- Wide temperature range: Adjustable from ambient +7°C up to 110°C for a broad range of laboratory applications.
- Electronic PID control: Provides accurate and stable regulation of the chamber temperature.
- PT100 temperature sensor: High-accuracy sensor supports reliable temperature measurement and control.
- 0.1°C digital resolution: Clearly displays set and actual process temperatures for easy monitoring.
- Excellent temperature uniformity: Chamber uniformity of ±1.0°C supports consistent incubation conditions.
- Low temperature variation: Single-point variation as low as ±0.3°C under specified test conditions.
- Solid-state relay control: Provides rapid switching response and dependable long-term operation.
- Independent safety thermostat: Adjustable hydraulic safety thermostat provides additional temperature protection.
- Durable stainless-steel chamber: SS304 interior provides corrosion resistance and is suited to regular laboratory use.
- Robust exterior: SS430 exterior with a powder-coated mild-steel control panel and door.
- Secure chamber closure: Fitted with a robust slam-lock door handle.
- Shelving included: Supplied as standard with two chrome-plated steel wire shelves.
Laboratory Incubator Applications
The 160L Digital Laboratory Incubator is suitable for temperature-controlled work across a wide range of scientific, educational and industrial environments.
Microbiology and Life Sciences
- Microbial culture incubation
- Bacterial and fungal growth studies
- Suitable cell culture applications
- Biological sample conditioning, storage and testing
- Biotechnology research
Pharmaceutical and Medical Laboratories
- Stability testing
- Laboratory quality-control procedures
- Sample conditioning
- Sterility testing workflows
- Controlled-temperature laboratory procedures
Research and Academic Laboratories
- Scientific research projects
- Educational laboratory experiments
- Environmental studies
- Biotechnology and life-science research
Chemistry and Industrial Laboratories
- Material testing
- Controlled heating applications
- Sample preparation and conditioning
- Product development
- Validation and quality-control procedures
Technical Specifications
| Capacity | 160 L |
| Temperature Range | Ambient +7°C to 110°C |
| Temperature Controller | Electronic PID controller with digital indication |
| Temperature Sensor | PT100 |
| Display Resolution | 0.1°C |
| Temperature Uniformity | ±1.0°C |
| Single-Point Temperature Variation | As low as ±0.3°C* |
| Interior Chamber | SS304 stainless steel |
| Exterior | SS430 stainless steel |
| Control Panel and Door | Powder-coated mild steel |
| Safety Control | Adjustable hydraulic safety thermostat |
| Control Relay | Solid-state relay |
| Shelves | 2 chrome-plated steel wire shelves included |
*Temperature variation specifications are based on no-load conditions at an ambient temperature of 25°C.
Reliable Incubation for Routine and Critical Laboratory Work
Combining a large 160 litre chamber with accurate PID temperature control, stainless-steel construction and built-in over-temperature protection, this digital laboratory incubator provides a dependable solution for laboratories requiring repeatable temperature-controlled conditions. Its broad operating range also allows a single unit to support a variety of incubation, conditioning, testing and controlled-heating procedures.
Contact PiSci Analytical for pricing, availability and assistance selecting the appropriate laboratory incubator for your application.
